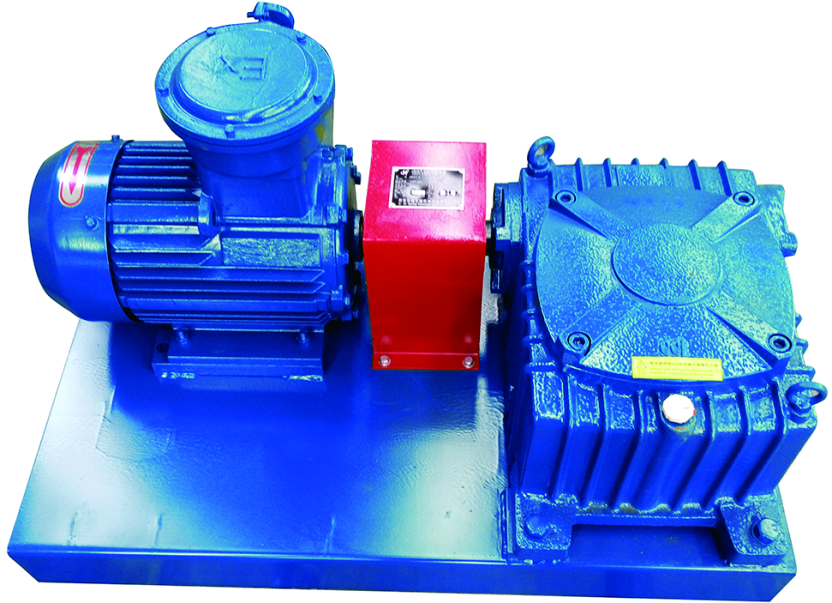

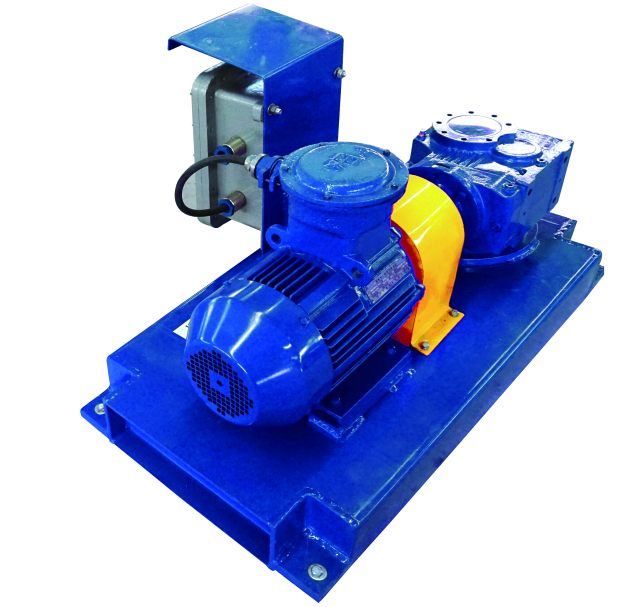

Agitator
source：西安華揚油氣設備有限公司 time：2017-11-10
|
Model |
Motor Power |
Impeller Speed |
Impeller Diameter |
Impeller Types |
Explosion-proof Standard |
Weight |
Dimensions |
| HYJBQ3 | 3Kw | 60/72r/min | 600mm | 1 | ExdIIBt4 /IECEX /A-TEX | 190kg | 909×525×527mm |
| HYJBQ5.5 | 5.5Kw | 600mm | 1 | 250kg | 1072×610×588mm | ||
| HYJBQ7.5 | 7.5Kw | 650mm | 2 | 380kg | 1157×670×607mm | ||
| HYJBQ11 | 11Kw | 800mm | 2 | 430kg | 1297×740×692mm | ||
| HYJBQ15 | 15Kw | 950mm | 2 | 480kg | 1330×890×747mm | ||
| HYJBQ18.5 | 18.5Kw | 1000mm | 2 | 740kg | 1510×890×753mm | ||
| HYJBQ22 | 22Kw | 1100mm | 2 | 780kg | 1529×890×753mm | ||
|
Remarks |
Above weight and dimension did not include the mud agitator shaft。 |
||||||
Features and functions：
1 Product structure optimization, small size, compact structure.
2 Running smoothly, small operating noise, long service life, less wearing parts, cost-effective.
3 Using high-pressure airless spraying equipment construction, after priming, paint, paint and other processes to achieve beautiful appearance and antiseptic effect
4 Agitator shaft and impeller treated through polishing, pickling, plating, hot dip galvanized, passivation, fine grinding processing, greatly improving the service life and antiseptic effect.
